Introduction

Vaultwarden is a lightweight, self-hosted alternative to Bitwarden that provides password management with minimal infrastructure overhead.

This guide demonstrates a production-ready deployment using:

• Rocky Linux 10 (container host)
• Podman (root-based container runtime)
• IIS 10 (reverse proxy + TLS termination)
• ARR + URL Rewrite
• SMTP integration
• Secure admin access model
• SELinux-compliant storage design

Unlike basic tutorials, this guide includes real operational constraints, failure modes, and production hardening practices.

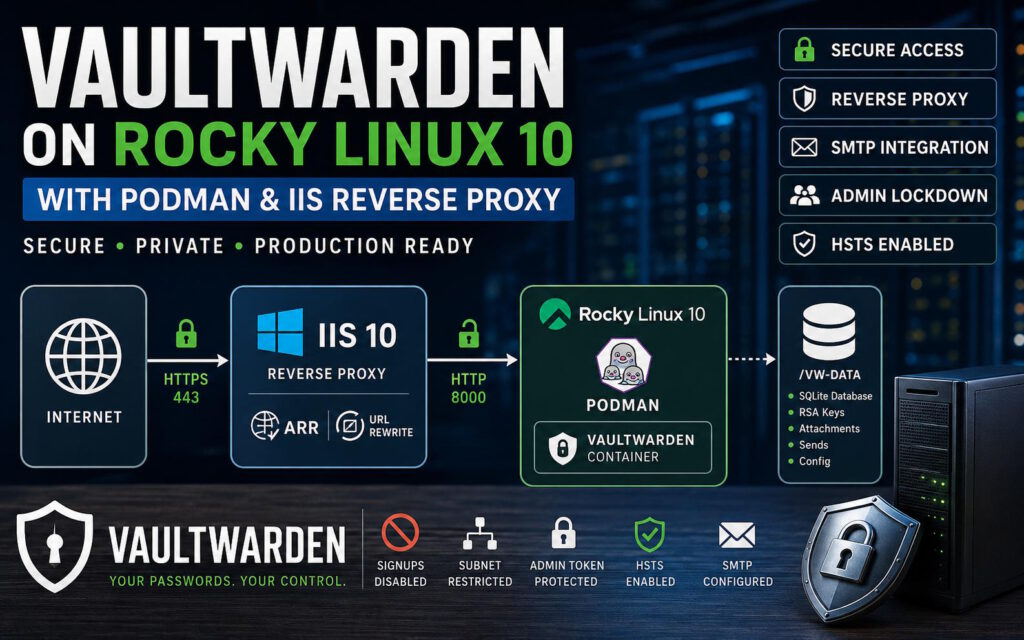

Architecture Overview

Components

Network Design Example

Traffic Flow

Internet
   ↓ HTTPS (443)
IIS Reverse Proxy (192.168.10.20)
   ↓ HTTP (8000)
Vaultwarden Container (192.168.10.50)

Rocky Linux 10 Preparation

Install Podman

sudo dnf update -y
sudo dnf install podman -y

Verify:

podman --version

Vaultwarden Data Directory (CRITICAL SECTION)

Vaultwarden stores ALL persistent data in a single directory:

/vw-data

Create directory

mkdir /vw-data
chmod 700 /vw-data

What /vw-data contains

⚠️ SELinux requirement (IMPORTANT)

On Rocky Linux 10, SELinux WILL block writes unless corrected.

Fix:

chcon -Rt container_file_t /vw-data

OR ensure Podman mount includes:

-v /vw-data:/data:Z

Why this matters

Without this:

• RSA key generation fails
• SQLite locks fail
• container exits on startup

Pull Vaultwarden Image

podman pull vaultwarden/server:latest

Environment Configuration

Create:

nano /vw-data/vaultwarden.env

Production Environment File

DOMAIN=https://vault.example.com
ADMIN_TOKEN=replace_with_strong_random_value
SIGNUPS_ALLOWED=false
IP_HEADER=X-Forwarded-For
SMTP_HOST=mail.example.com
SMTP_FROM=vault@example.com
SMTP_FROM_NAME=Vaultwarden
SMTP_SECURITY=force_tls
SMTP_PORT=465
SMTP_USERNAME=vault@example.com
SMTP_PASSWORD=your_password

Configuration Behavior (IMPORTANT)

Vaultwarden config precedence

1. Environment variables (container runtime)
2. config.json (if present)
3. internal defaults

⚠️ Critical rule

Changes to .env DO NOT apply to running containers.

You must recreate the container.

Starting Vaultwarden

podman run -d \
  --name vaultwarden \
  -e DOMAIN="https://vault.domain.tld" \
  -v /vw-data:/data:Z \
  --restart unless-stopped \
  -p 127.0.0.1:8000:80 \
  vaultwarden/server:latest

Container Lifecycle Reality

First run behavior

• Generates rsa_key.pem
• Initializes SQLite database
• Creates folder structure

Restart behavior

• Keeps existing data
• DOES NOT reload env changes

IIS Reverse Proxy Configuration

Required IIS Modules

• URL Rewrite
• Application Request Routing (ARR)
• WebSocket Protocol
• IP and Domain Restrictions

Enable ARR Proxy

IIS Manager → Server → Application Request Routing Cache
→ Server Proxy Settings → Enable Proxy ✔

Web.config (Production Ready)

<?xml version="1.0" encoding="UTF-8"?>
<configuration>

    <system.webServer>

        <!-- =========================
             URL REWRITE RULES
        ========================== -->
        <rewrite>
            <rules>

                <!-- BLOCK /admin except allowed subnets -->
                <rule name="BlockAdmin" stopProcessing="true">
                    <match url="^admin/?(.*)" />

                    <conditions logicalGrouping="MatchAll">
                        <add input="{REMOTE_ADDR}"
                             pattern="^(172\.16\.(2[89]|3[01])\.[0-9]{1,3}|10\.20\.28\.[0-9]{1,3})$"
                             negate="true" />
                    </conditions>

                    <action type="CustomResponse"
                            statusCode="403"
                            statusReason="Forbidden"
                            statusDescription="Forbidden" />
                </rule>

                <!-- Reverse proxy to Vaultwarden -->
                <rule name="VaultwardenReverseProxy" stopProcessing="true">
                    <match url="(.*)" />

                    <serverVariables>
                        <set name="HTTP_X_FORWARDED_PROTO" value="https" />
                        <set name="HTTP_X_FORWARDED_HOST" value="{HTTP_HOST}" />
                        <set name="HTTP_X_FORWARDED_FOR" value="{REMOTE_ADDR}" />
                    </serverVariables>

                    <action type="Rewrite"
                            url="http://192.168.10.50:8000/{R:1}" />
                </rule>

            </rules>
        </rewrite>

        <!-- =========================
             CUSTOM ERROR PAGES (FIXED SAFELY)
        ========================== -->
        <httpErrors errorMode="Custom" existingResponse="Replace">

            <!-- REMOVE IIS DEFAULT 403 PAGE -->
            <remove statusCode="403" />

            <!-- CUSTOM 403 PAGE -->
            <error statusCode="403"
                   path="/403.html"
                   responseMode="File" />

        </httpErrors>

        <!-- =========================
             SECURITY HEADERS
        ========================== -->
        <httpProtocol>
            <customHeaders>
                <add name="Strict-Transport-Security"
                     value="max-age=31536000; includeSubDomains; preload" />
            </customHeaders>
        </httpProtocol>

    </system.webServer>

</configuration>

WebSockets Requirement

Vaultwarden uses WebSockets for:

• Real-time sync
• Login session updates
• Device notifications

Without WebSockets:

• UI updates delay
• Mobile sync issues

SMTP Configuration Notes

Valid values only:

Invalid configuration example

SMTP_SECURITY=ssl ❌

This causes startup failure.

Admin Panel Security

Enable admin panel

ADMIN_TOKEN=strong_random_value

Access:

https://vault.example.com/admin

Security model

• Admin is NOT user-authenticated
• It is token-based only
• Must never be publicly exposed

Restricting Access (Production Model)

Recommended approach

✔ Restrict entire Vaultwarden to internal network:

172.16.28.0/22

Configured via IIS:

• IP Address and Domain Restrictions
• Deny all unspecified clients
• Allow internal subnet only

Backup Strategy

Backup command

tar czf vaultwarden-backup.tar.gz /vw-data

Restore procedure

systemctl stop podman-vaultwarden
tar xzf vaultwarden-backup.tar.gz -C /
systemctl start podman-vaultwarden

Common Failure Scenarios

1. Permission denied (rsa_key.pem)

Cause:

• SELinux blocking write

Fix:

chcon -Rt container_file_t /vw-data

2. SMTP_SECURITY crash

Cause:

• invalid value (e.g. “ssl”)

Fix:

• use force_tls or starttls

3. ENV changes not applying

Cause:

• container not recreated

Fix:

podman rm -f vaultwarden
podman run ...

4. Admin panel disabled

Cause:

• missing ADMIN_TOKEN

Fix:

• set token + recreate container

Security Recommendations

• Disable public signups
• Restrict admin panel to internal network
• Enable HSTS
• Use HTTPS only at IIS
• Pin Vaultwarden version (avoid latest)
• Regular backups of /vw-data

Final Thoughts

Vaultwarden combined with Podman and IIS provides a lightweight but production-capable password management system. However, its reliability depends heavily on:

• correct SELinux configuration
• proper container lifecycle management
• secure reverse proxy setup
• strict admin access control

When correctly configured, it is suitable for enterprise-grade internal deployments without requiring the complexity of the official Bitwarden stack.
